System IC
-
-
Platform

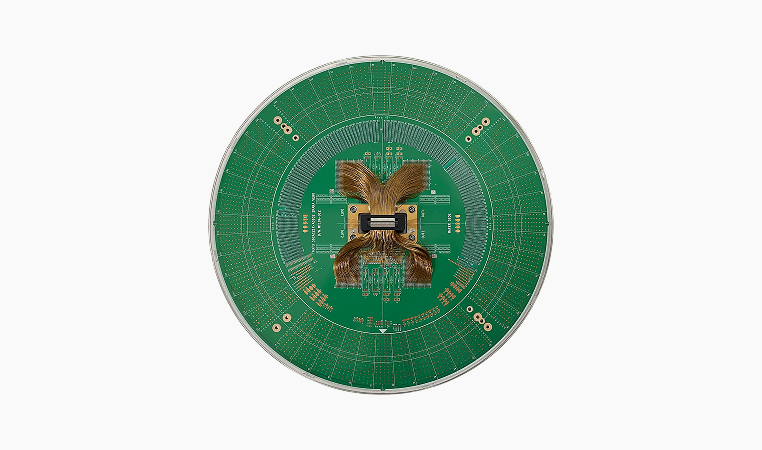

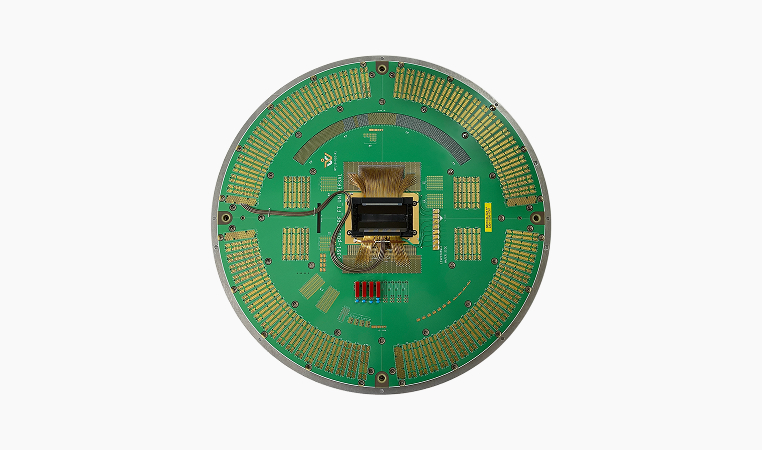

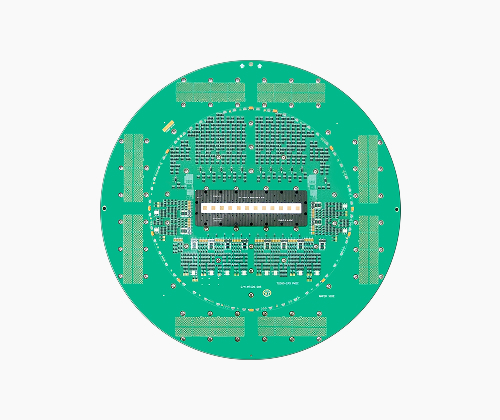

- T6391[ND4] Φ440mm, ADVANTEST
-
Key Features
- High parallelism over 16ea
Ultra fine pitch : 10/20㎛
High speed test over 6Gbps

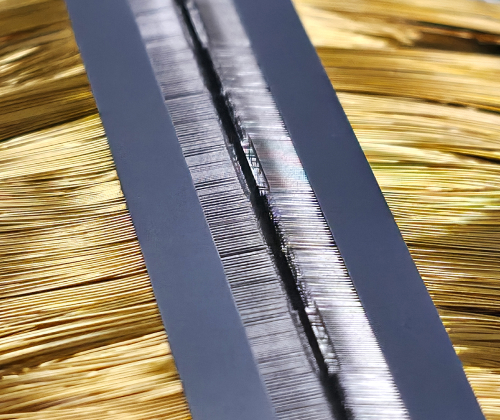

Customized probe materials and characteristics (Pd, Pt Alloy, ReW, low force for Au bump)
-
Application
- Display Driver IC wafer test
-
-
-

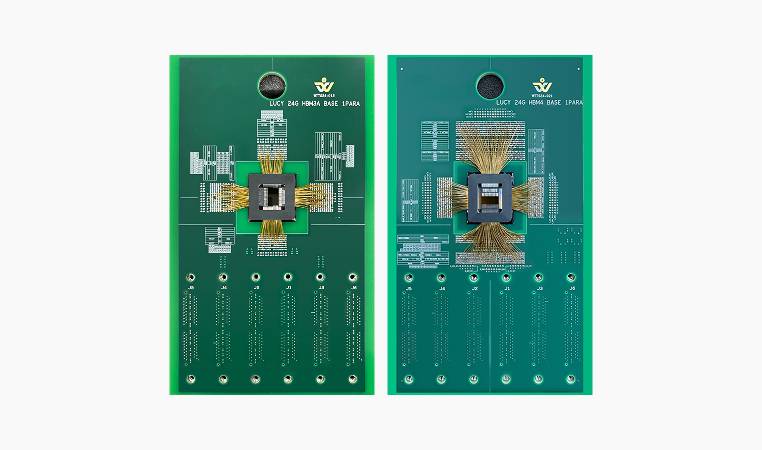

Platform
- T6391[ND4] Φ440mm, ADVANTEST
-
Key Features

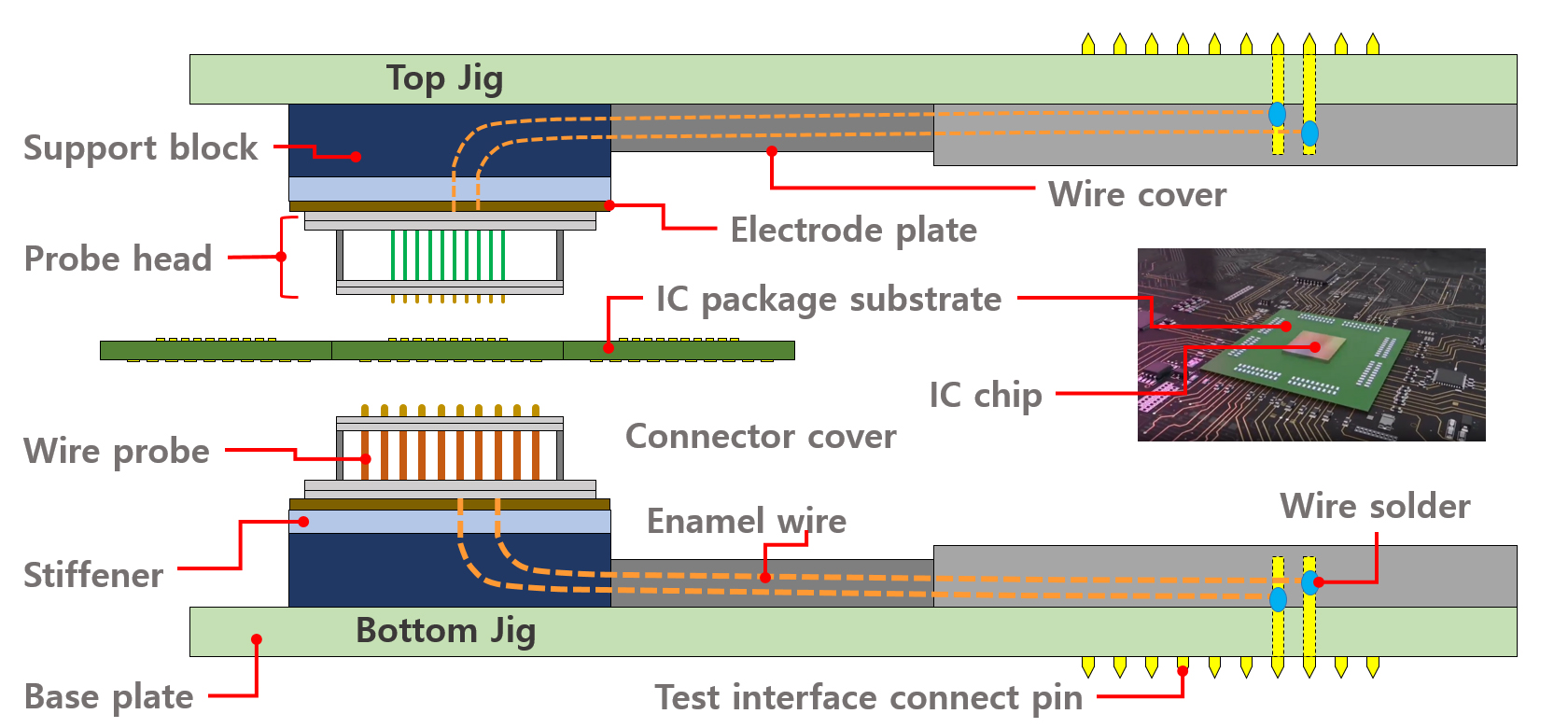

- Supports various chip on film (COF) package standards
High parallelism over 3ea
-
Application
- Display Driver IC COF package test
-
-
-
Platform

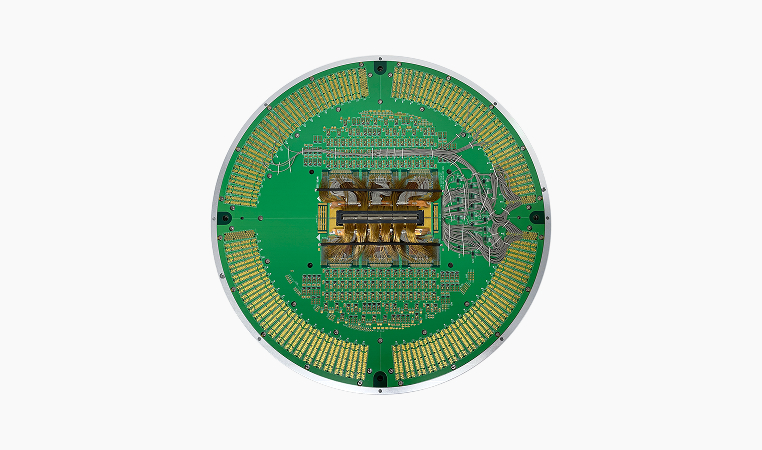

- Diamond-X, COHU
-
Key Features
- High parallelism over 16ea
Ultra fine pitch : 10/20㎛
High speed test over 6Gbps
Customized probe materials and characteristics (Pd, Pt Alloy, ReW, low force for Au bump)
-
Application
- Display Driver IC wafer test
-
-
-
Platform
- Ultra Flex XD Φ300mm, TERADYNE
-
Key Features
- Fine pitch less than 40㎛
High parallelism over 16ea
ReW probe for Al pad test
-
Application
- Flash controller, ASIC, other SoC etc.
-
-
-
Platform
- T6373[ND3] Φ300mm, ADVANTEST
-
Key Features
- High speed test over 4Gbps
Over 8ea parallelism
Customized probe materials and characteristics (Pd, Pt Alloy, ReW, low force for Au bump)
-
Application
- Display Driver IC Wafer & COF Package
-
-
-
Platform

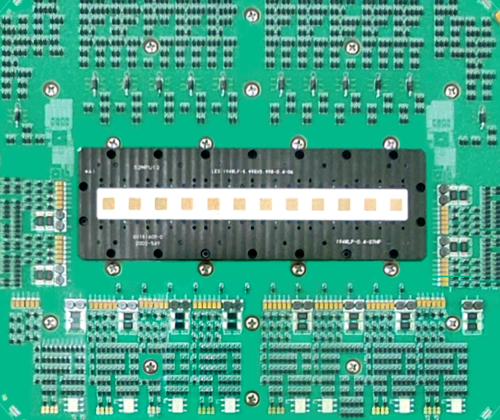

- Magnum-SV, TERADYNE
-
Key Features
- Over 512ea parallelism, High test productivity
Fine pitch less than 40㎛
ReW probe for Al pad test
-
Application
- Smart IC, Other SoC
-
-
-

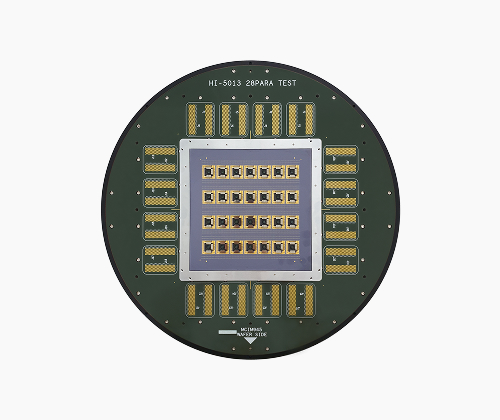

Memory IC
-
-
Platform
- Customer specifications
-
Key Features
- Flexibility to meet customers’ diverse test platform and requirements
-
Application
- High Band width Memory(HBM) development
For testing and analysis in the semiconductor development stage
-
-
