MEMS Probe Manufacturing Service

Based on our accumulated know-how in MEMS process technology and various alloy materials, we swiftly and accurately manufacture and supply customized MEMS probe that customers require.

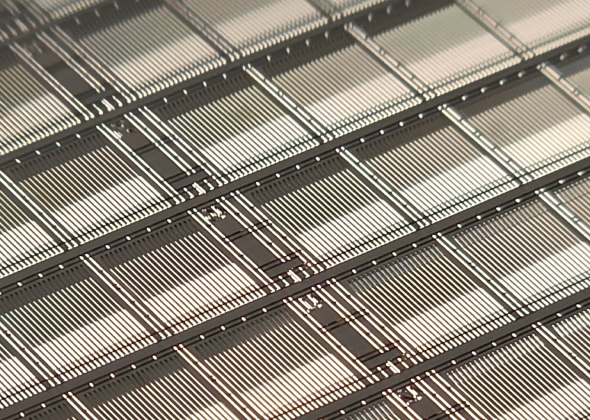

  • 2D MEMS probe manufacturing service

    • MEMS vertical probe, MEMS cantilever probe
    • Customer request design and process
    • Probe design, simulation and evaluation support

  • Probe materials

    • Ni-alloy, Pd-alloy, Au, Rh, Ag, Insulation coating

  • Batch manufacturing service for MEMS vertical probe head

    • Including probe, guide plate and assembly

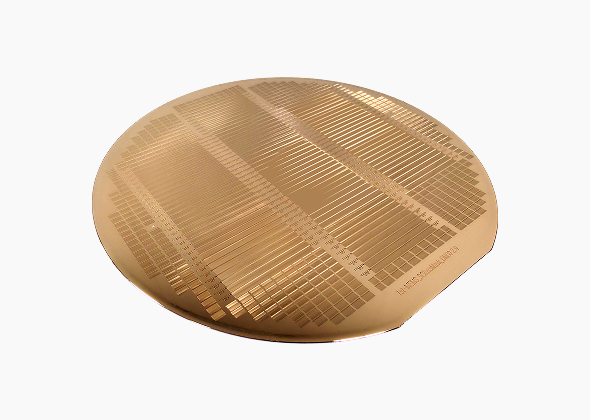

  • Patterned wafer manufacturing service

    • Electrode patterns of various metals for testing and development purposes

Precision Micro Hole Drilling Service

We have ultra-precision hole processing technology using the latest Laser micro drilling machine and Mechanical micro drilling machine and provide customized micro hole guide plate processing service required for manufacturing Probe Card for semiconductor inspection and various probing inspection devices.

  • Laser micro hole drilling

    • Fine hole size: Min. 25㎛, 200㎛-thick
    • Rectangular hole, Circular hole, Other customer requests

  • Mechanical micro hole drilling

    • Fine hole size: Min. 30㎛, 200㎛-thick
    • Circular hole

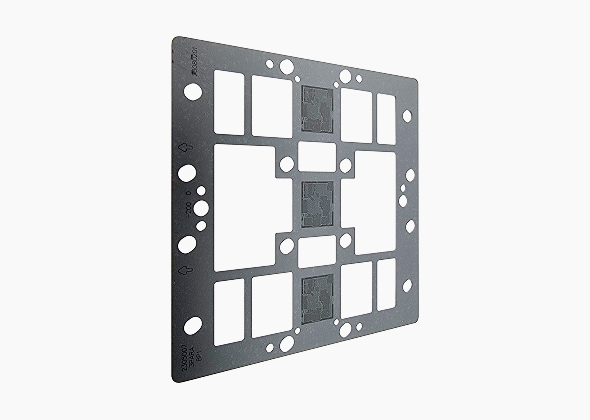

  • Guide plate materials

    • Ceramic: Silicon nitride, Photoveel, Alumina, etc.
    • Engineering plastic: MDS-100, S-1000, R-820, PEEK, etc.

  • Application

    • Probe card, PCB electronic test jig, IC package test socket, etc.
