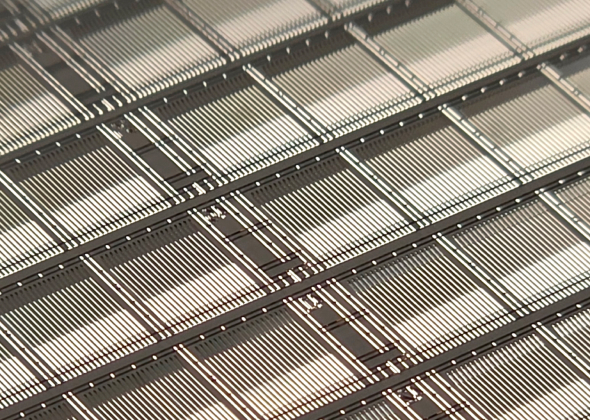

MEMS Probe Manufacturing Service

MEMS 공정 기술 및 다양한 합금 소재에 대한 축적된 노하우를 바탕으로, 고객이 필요로 하는 맞춤형 MEMS probe를 신속하고 정확하게 제조하여 공급해 드립니다.

  • 2D MEMS probe manufacturing service

    • MEMS vertical probe, MEMS cantilever probe
    • Customer request design and process
    • Probe design, simulation and evaluation support

  • Probe materials

    • Ni-alloy, Pd-alloy, Au, Rh, Ag, Insulation coating

  • Batch manufacturing service for MEMS vertical probe head

    • Including probe, guide plate and assembly

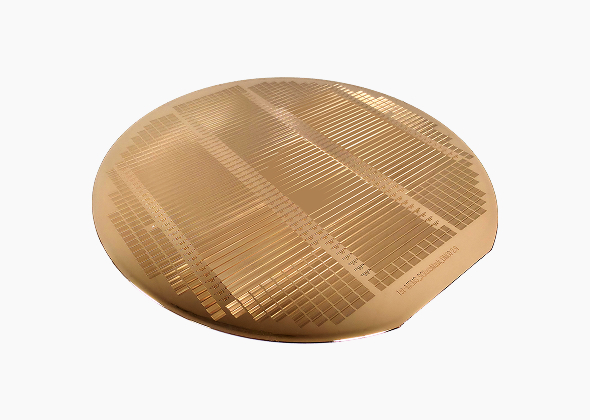

  • Patterned wafer manufacturing service

    • Electrode patterns of various metals for testing and development purposes

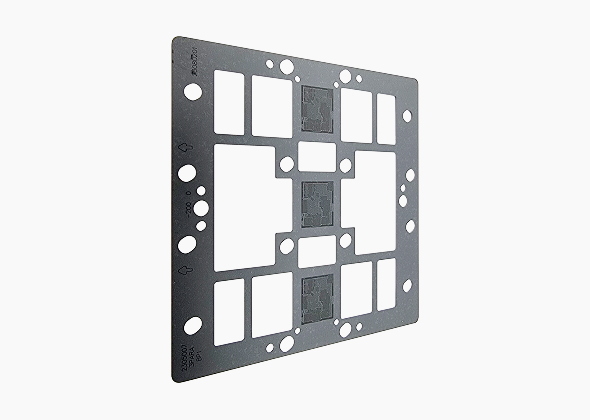

Precision Micro Hole Drilling Service

최신의 Laser micro drilling machine 및 Mechanical micro drilling machine을 이용한 초정밀 부품 가공 기술을 보유하고 있으며, 반도체 검사용 probe card 및 다양한 probing 검사 장치의 제조에 필요한 고객 맞춤형 micro hole guide plate 가공 서비스를 제공합니다.

  • Laser micro hole drilling

    • Fine hole size: Min. 25㎛, 200㎛-thick
    • Rectangular hole, Circular hole, Other customer requests

  • Mechanical micro hole drilling

    • Fine hole size: Min. 30㎛, 200㎛-thick
    • Circular hole

  • Guide plate materials

    • Ceramic: Silicon nitride, Photoveel, Alumina, etc.
    • Engineering plastic: MDS-100, S-1000, R-820, PEEK, etc.

  • Application

    • Probe card, PCB electronic test jig, IC package test socket, etc.
